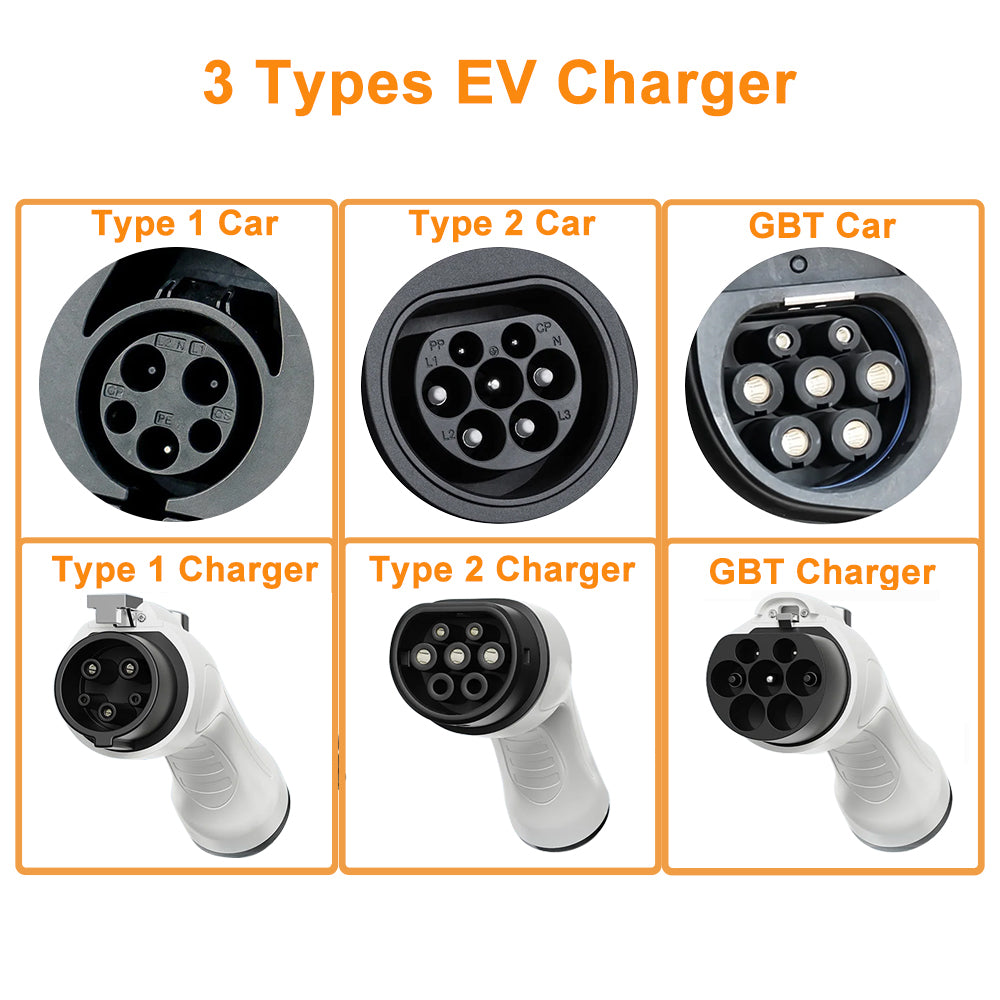

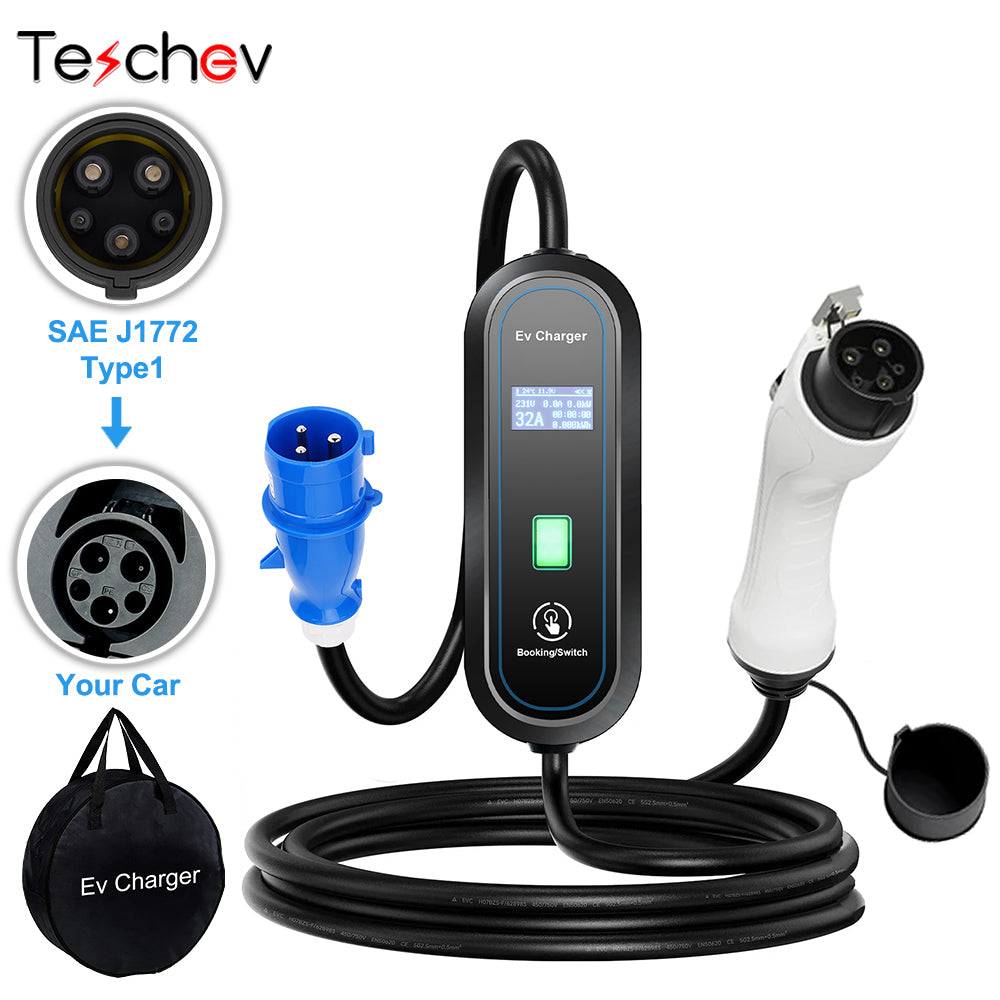

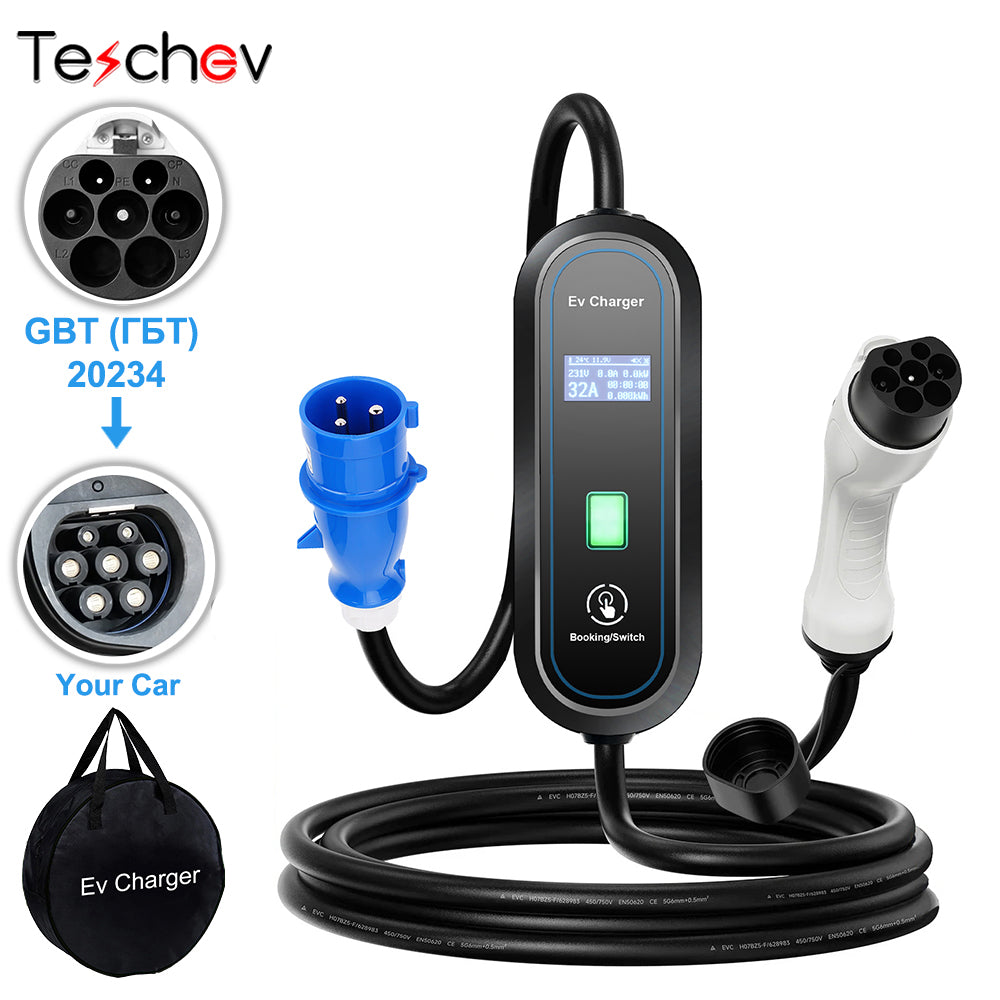

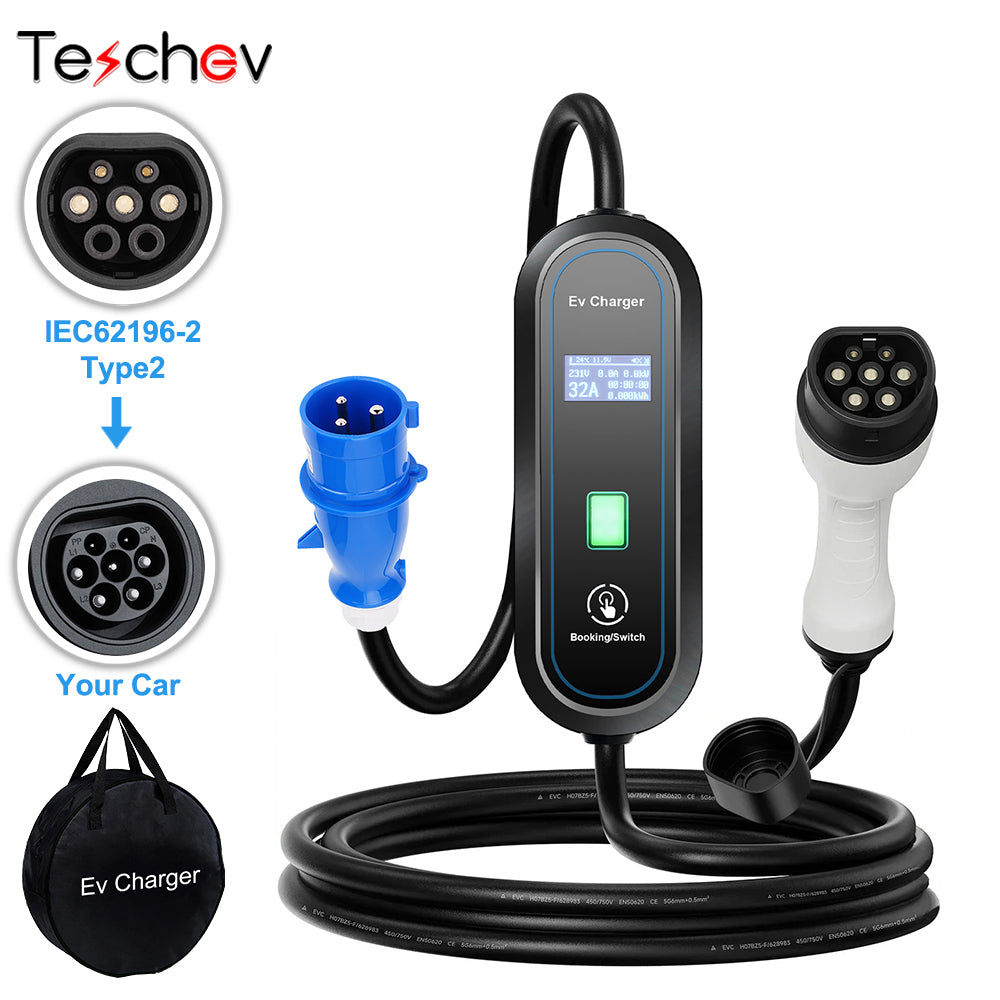

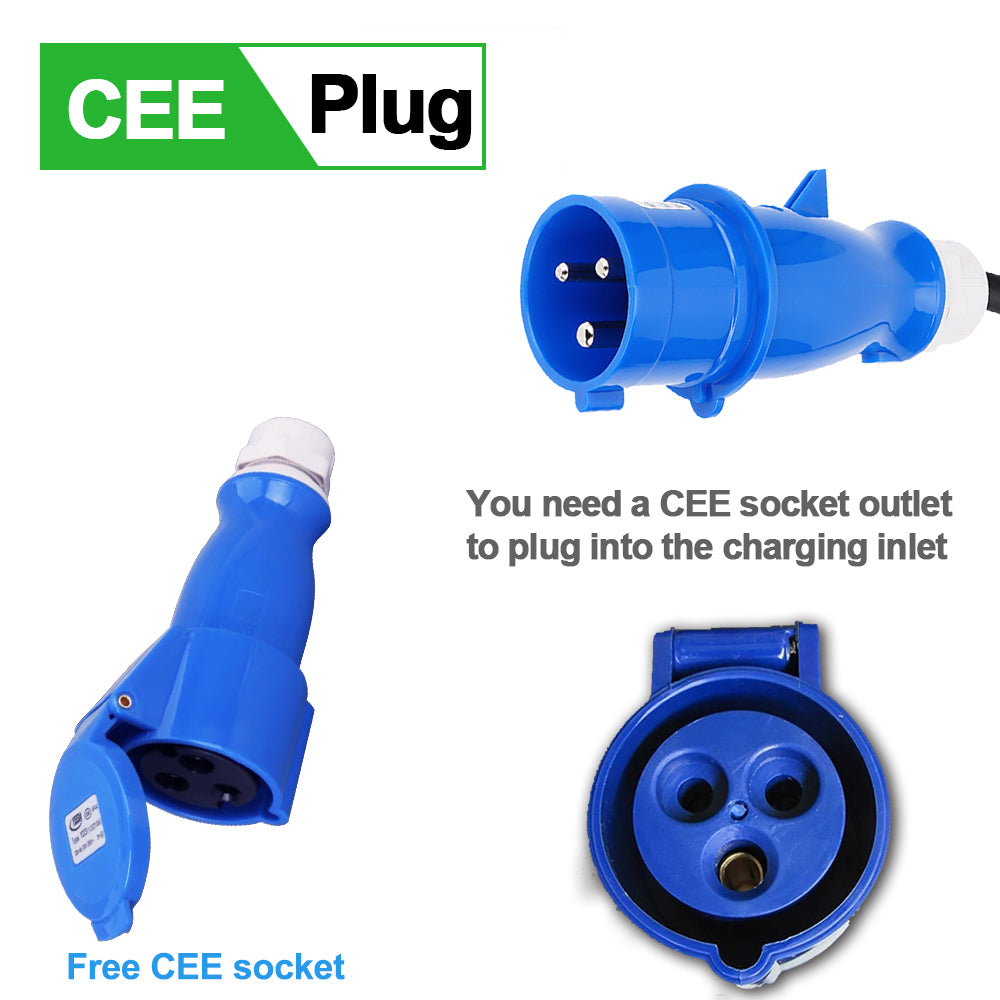

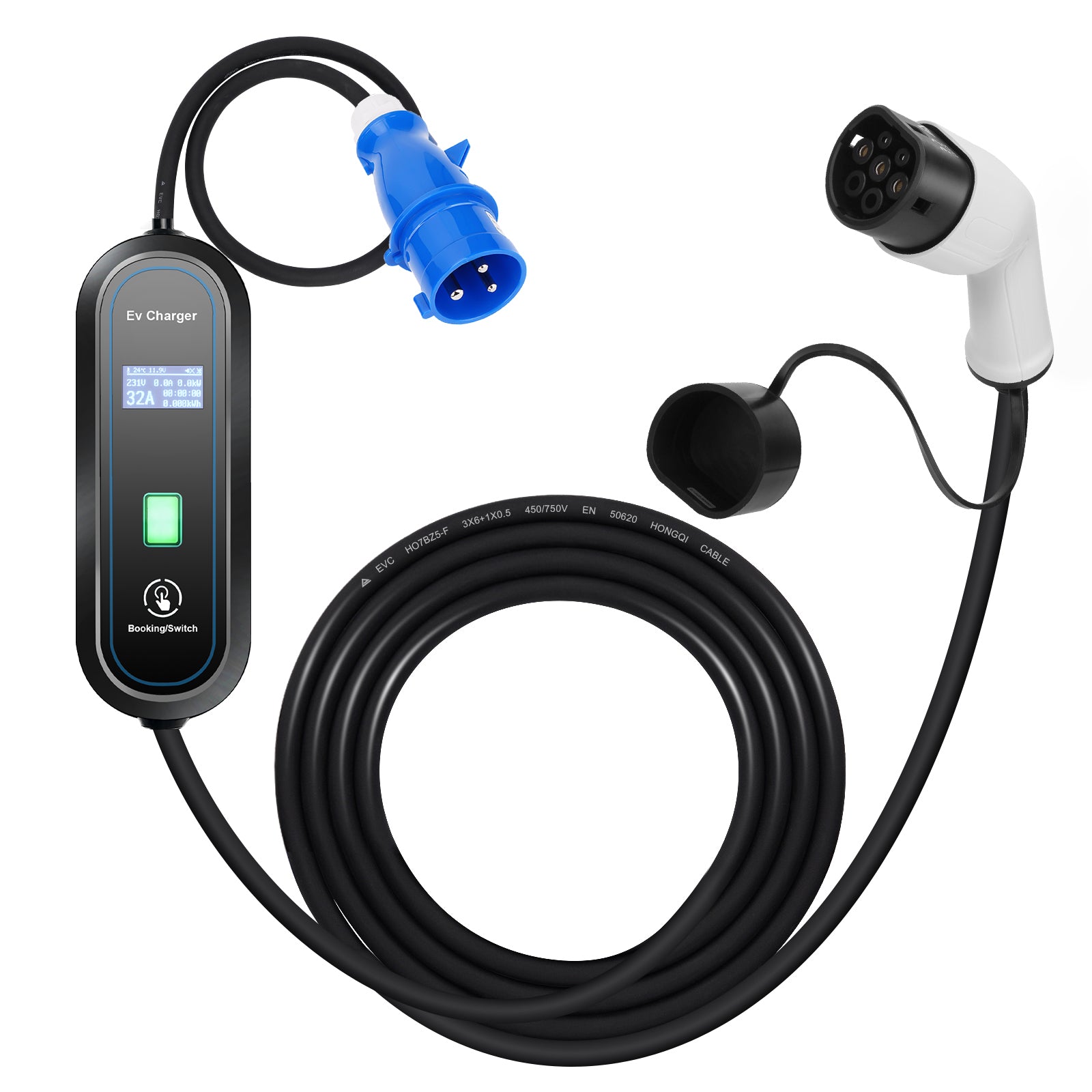

Teschev 32A 7KW Type2 EV Charger Portable GB/T Electric Vehicle Charger Type1 Wallbox CEE Plug EVSE Charging Cable 5M

Main Features:

Phases: Single phase

Output Power: 7kW

Power pins: 3 pcs(L1, N, PE)

Input Voltage: 230V ±20 AC

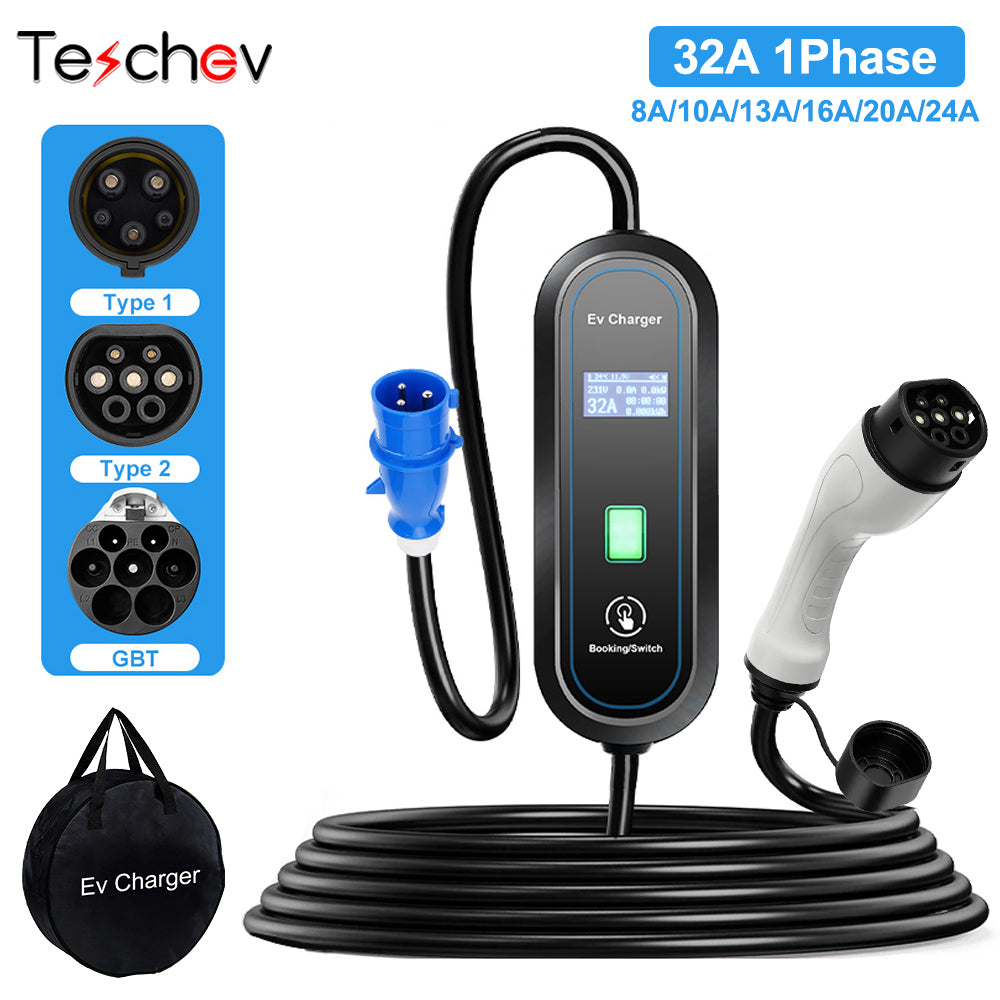

ChargingCurrent: 8A/10A/13A/16A/20A/24A/32A Adjustable

Signal pins: 2 pcs (CP, PD)

Signal current: 2A

Signal voltage: 30V AC

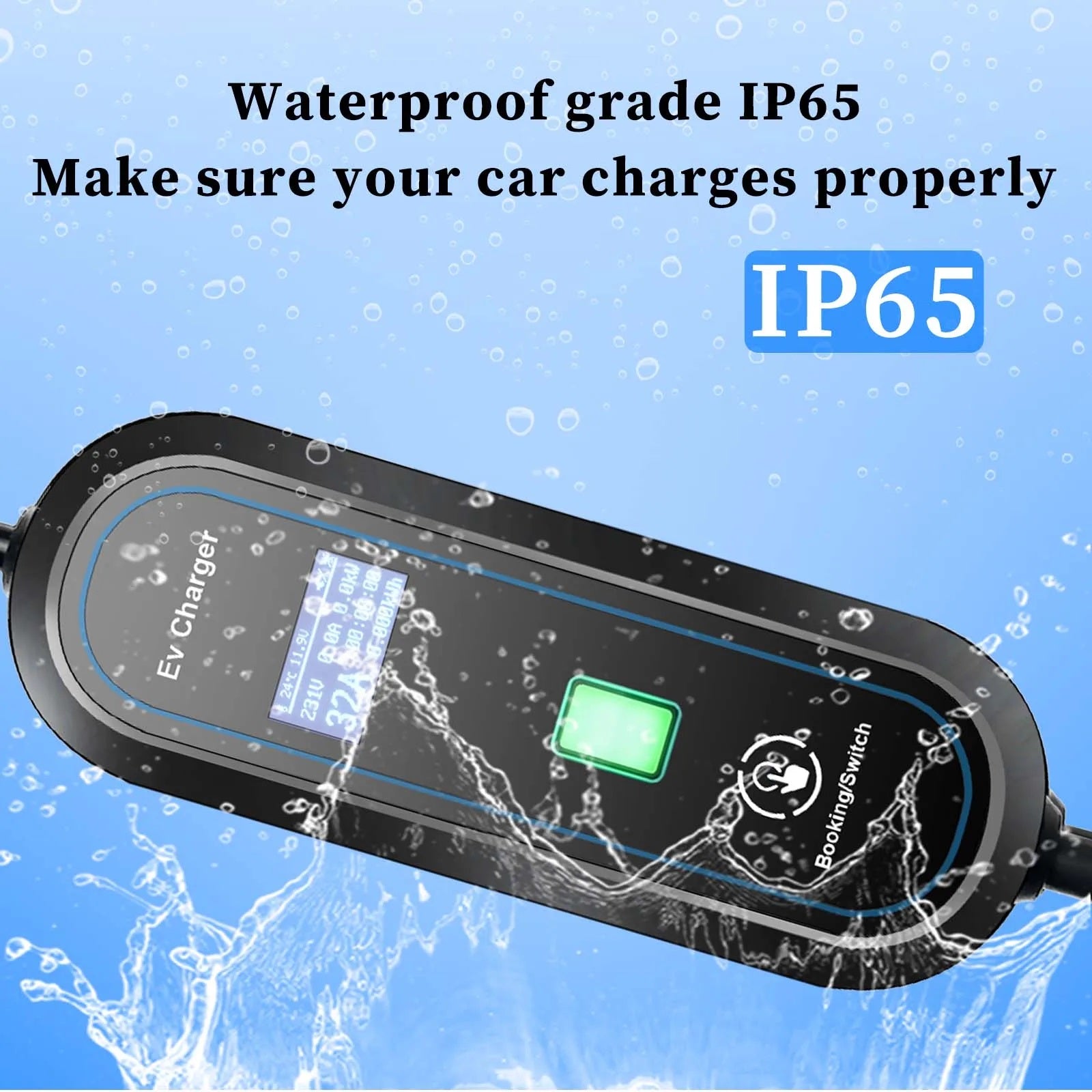

IP Rating: IP55

Operating tempeature: -25℃ to +60℃

Length: 5 meters

Weight: About 3.7kg

Mechanical life: plug in/out > 10000 times

Impact of external force: can afford 2m drop and 2t vehicle run over pressure

Insulation resistance: > 1000MD (DC500V)

Terminal temperature rise: < 50K

Housing Fire Rating：UL94V-0

Control Box Function:

1. Leakage protection

2. Over-voltage or Low-voltage protection

3. Over-load protection

4. Lightning protection

5. Over-heat protection

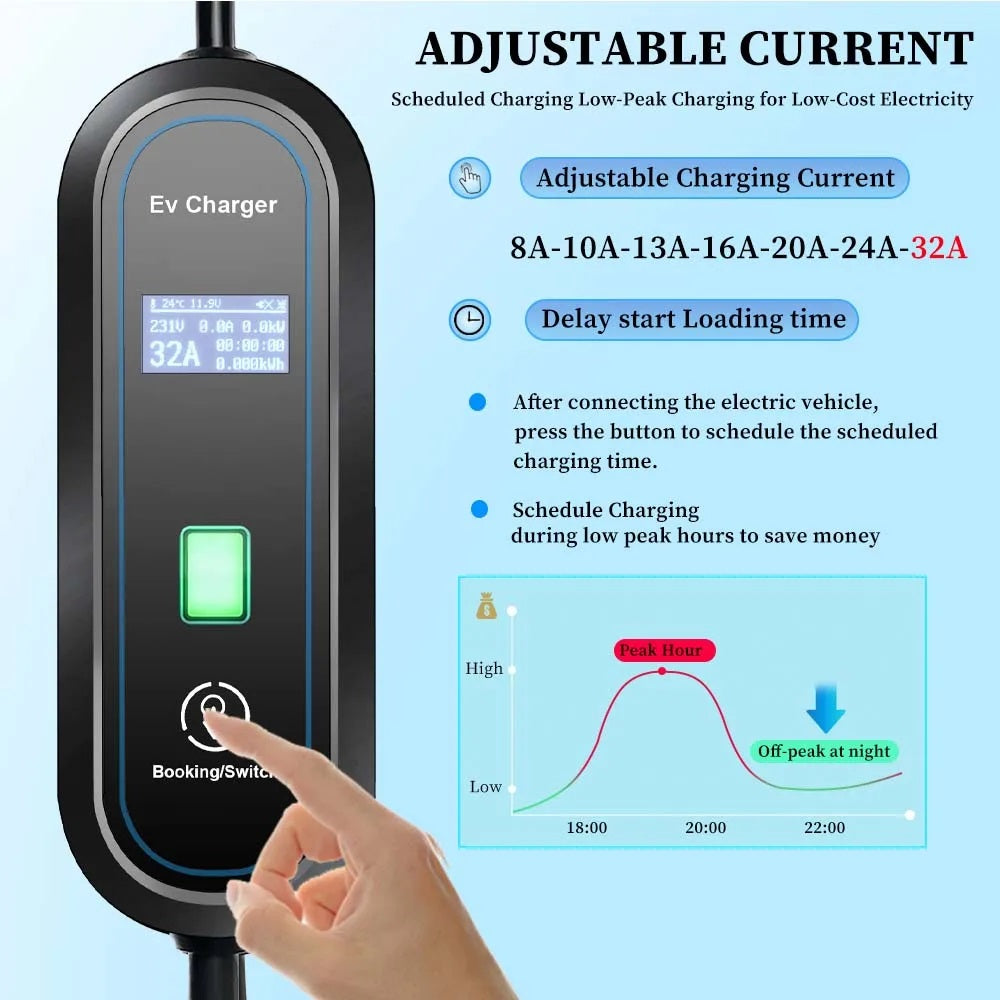

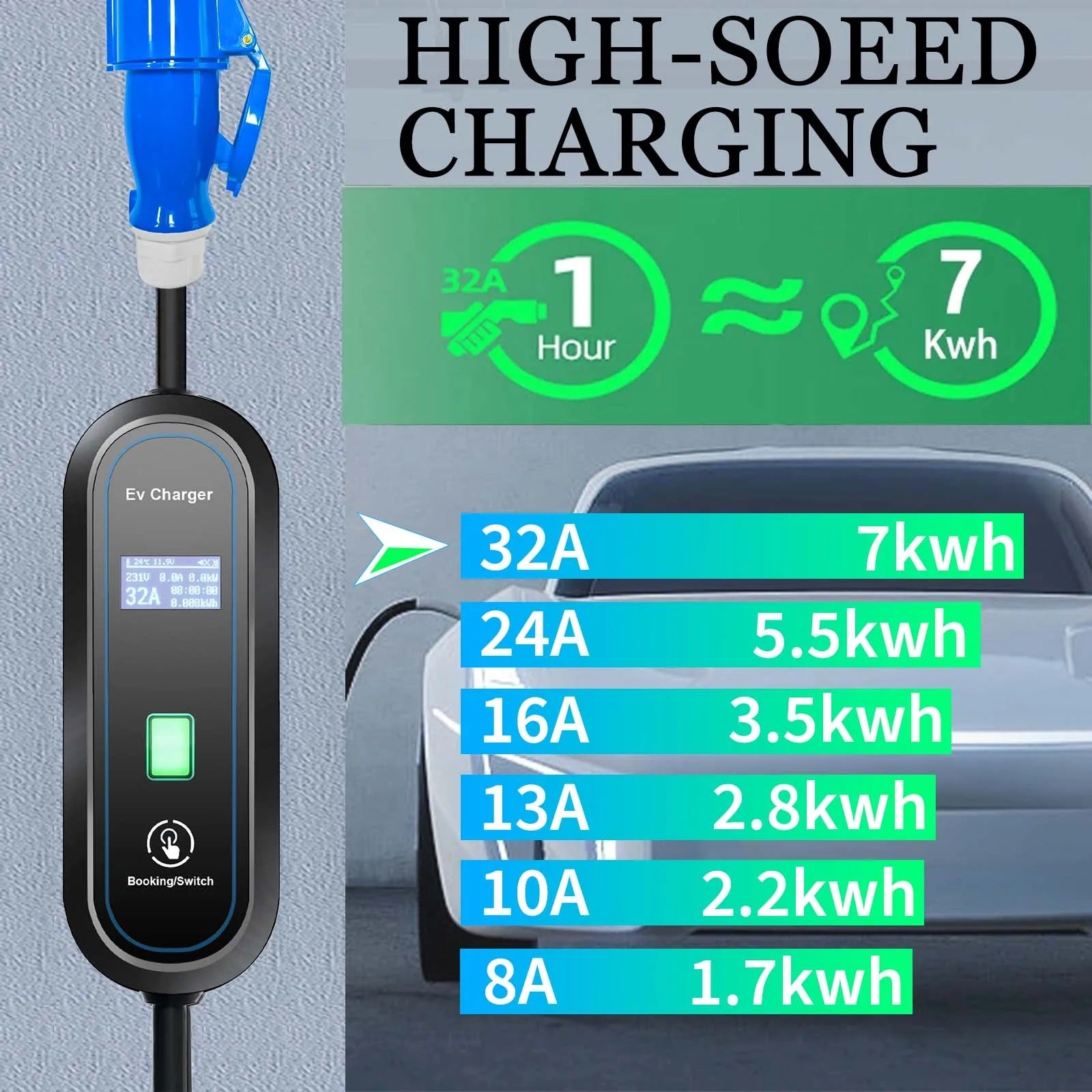

6. Change current: 8A/10A/13A/16A/20A/24A/32A

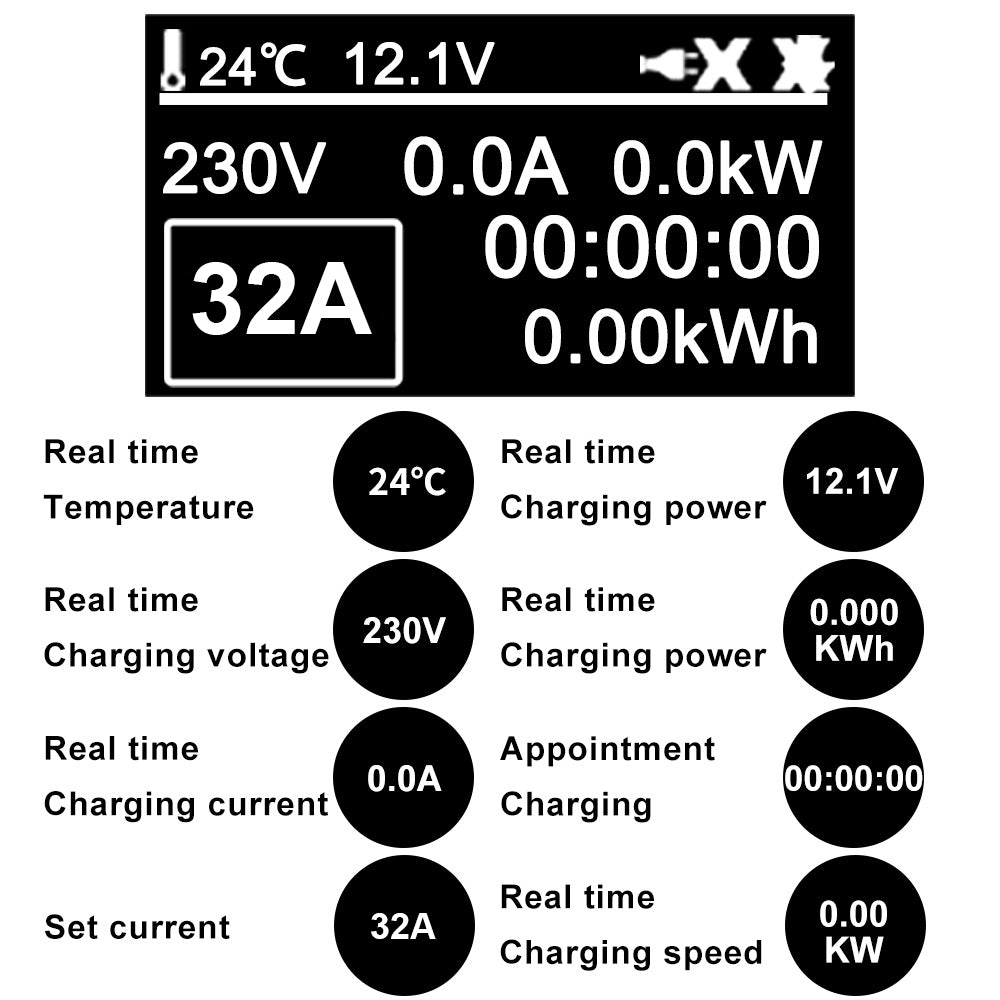

LED Display:

1. Charging Temperature

2. Charging Status

3. Set Current

4. Charged time

5. Charging Current
